Analog Signal Transmitter

Power Transmitter



Athena product catalogs are available here for viewing in

PDF format. To view or print pages from the catalog, you

must have the Acrobat Reader plug-in installed. To obtain the free plug-in, click on

 the Acrobat Reader icon to the right and follow the installation instructions.



 Series TD

 Series TK

DC SIGNAL ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Wide selection of input/output

    range

Dielectric strength 2KVac/1

    min.(input/output)

Wide input range for auxiliary

    power

Dimension small & High stability

POTENTIOMETER ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Wide selection of input/output

    range

Dielectric strength 2KVac/1

    min.(input/output)

Wide input range for auxiliary power

Dimension small & High stability

Series TR

Series TP

RESISTANCE ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Wide selection of input/output

    range

Dielectric strength 2KVac/1

    min.(input/output)

Wide input range for auxiliary

    power

Dimension small & High

    stability

RTD (Pt-100) ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Wide selection of input/output

     range

Dielectric strength 2KVac/1

    min.(input/output)

Wide input range for auxiliary

    power

Dimension small & High stability

 Series TL

Series TA

LOAD-CELL ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Wide selection of input/output

    range

Dielectric strength 2KVac/1

    min.(input/output)

Wide input range for auxiliary

    power

Dimension small & High stability

AC CURRENT & VOLTAGE ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Wide selection of input/output

    range

Dielectric strength 2KVac/1

    min.(input/output)

Wide input range for auxiliary power

Dimension small & High stability

Series TMF

 Series TMT

MICROPROCESS FREQUENCY ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Input type DCA/DCV/ACA/

    ACV/Potentiometer/Transmitter

    etc.....

15bit DAC isolating analog

    output function

Dielectric strength 2KVac/1min.

    (input/output/power)

Wide input range for auxiliary

    power

Dimension small and High

    stability

MICROPROCESS THERMOCOUPLE ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Input type DCA/DCV/ACA/ACV/

    Potentiometer/Transmitter etc.....

15bit DAC isolating analog output

    function

Dielectric strength 2KVac/1min.

    (input/output/power)

Wide input range for auxiliary

    power

Dimension small and High

    stability

Series MAT

Series MMT

MICROPROCESS ANALOG SIGNAL ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Input type DCA/DCV/ACA/

   ACV/Potentiometer/Transmitter

    etc.....

15bit DAC isolating analog

    output  function

Dielectric strength 2KVac/1min.

    (input/output/power)

Wide input range for auxiliary

    power

Dimension small and High

    stability

MICROPROCESS MATH FUNCTION ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Input type DCA/DCV/ACA/ACV/

    Potentiometer/Transmitter etc.....

15bit DAC isolating analog

    output  function

Dielectric strength 2KVac/1min.

    (input/output/power)

Wide input range for auxiliary

    power

Dimension small and High

    stability

Series TDT

 Series DKT

DUAL OUTPUT DC SIGNAL ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Wide selection of input/output

    range

Dielectric strength 2KVac/1

    min. (input/output)

Wide input range for auxiliary

    power

Dimension small & High

    stability

DUAL OUTPUT POTENTIOMETER ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Wide selection of input/output

    range

Dielectric strength 2KVac/1

    min. (input/output)

Wide input range for auxiliary

    power

Dimension small & High

    stability

Series DTR

Series DTP

DUAL OUTPUT RESISTANCE ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Wide selection of input/output

    range

Dielectric strength 2KVac/1

    min. (input/output)

Wide input range for auxiliary

    power

Dimension small & High

    stability

DUAL OUTPUT RTD ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Wide selection of input/output

    range

Dielectric strength 2KVac/1

    min. (input/output)

Wide input range for auxiliary

    power

Dimension small & High

    stability

Series STL

 Series STP
SLIM TYPE LOAD-CELL ISOLATED TRANSMITTER

Accuracy 0.1%F.S.(TRMS),

0.25%(RMS)

Wide selection of input/

output range

Dielectric strength 1.5KVac/

1 min.(input/output1/output2)

Wide input range for auxiliary

power

Dimension small and High

stability
SLIM TYPE RTD (Pt-100) ISOLATED TRANSMITTER

Accuracy 0.1% F.S.
Wide selection of input/output range
3 wire configuration automatically compensate line resistance effects
Wide input range for auxiliary power
Dimension small and High stability

Series STF

 Series STK
SLIM TYPE FREQUENCY ISOLATED TRANSMITTER

Accuracy 0.1%F.S.(TRMS),

0.25%(RMS)

Wide selection of input/

output range

Dielectric strength 1.5KVac/

1 min.(input/output1/output2)

Wide input range for auxiliary

power

Dimension small and High

stability
SLIM TYPE RTD (Pt-100) ISOLATED TRANSMITTER

Accuracy 0.1% F.S.
Wide selection of input/output range
3 wire configuration automatically compensate line resistance effects
Wide input range for auxiliary power
Dimension small and High stability

Series STA

 Series STD

SLIM TYPE AC CURRENT/

VOLTAGE ISOLATED

TRANSMITTER

Accuracy 0.1%F.S.(TRMS),

0.25%(RMS)

Wide selection of input/

output range

Dielectric strength 1.5KVac/

1 min.(input/output1/output2)

Wide input range for auxiliary

power

Dimension small and High

stability

SLIM TYPE DC SIGNAL ISOLATED TRANSMITTER

Accuracy 0.1%F.S.

Wide selection of input/

output range

Dielectric strength 1.5KVac/

1 min.(input/output)

Wide input range for auxiliary

power

Dimension small and High

stability
Series TWP Series TW

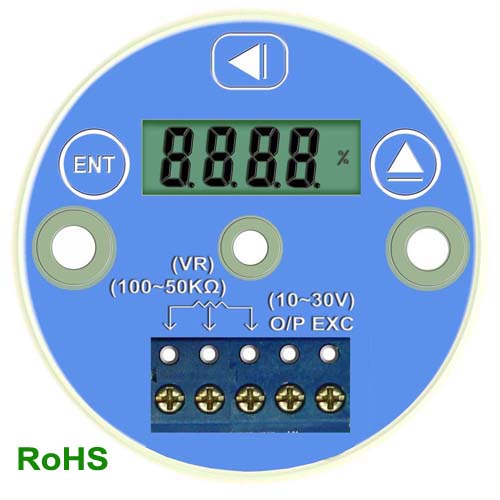

HEAD-MOUNTED TWO-WIRE POTENTIONMETER TRANSMITTER
Accuracy 0.1%F.S.
Wide input ranges from 100Ω to 50KΩ(3-wire)
Burnout protection function, upscale the outpu current limit of approximately≦20.32mA
Field-rangeable supper voltage from 10 to 30V
RL(max.)=(Vsupply~9V)/20mA,up to 750 ohms at 24VDCLow cost and high stability
HEAD-MOUNTED TWO-WIRE TEMPERATURE TRANSMITTER
Accuracy 0.1%F.S.(Pt-100),0.2%F.S.±0.5℃(CJC)(TC)
Input range(1999~9999)/Display unit(℃,℉)canbemodify
Burnout protection function, upscale the outpu current limit of approximately≦20.32mA
Field-rangeable supper voltage from 10 to 30V
RL(max.)=(Vsupply~9V)/20mA,up to 750 ohms at 24VDCLow cost and high stability
Series MPW-400
  Multi Digital Power Transducer
Accuracy ±0.2% F.S.
voltage input rang:10-300VAC
current input rang:0.005~1A / 0.025~5A
Frequency:46~64HZ
Power Supply:AC 85-265V ,DC 80-330V ,DC20-40V
Digital Output:2 Out @ 24VDC for over current alarm
Interfaces:1 x RS232 port and 1 x Ethernet Lan or 1xRS485
Protocols:MODBUS RTU (RS232) , MODBUS TCP (RJ45)
Device address :1 - 254
Mounting:DIN Rail, ABS Plastic case
Measured Power system:3Ph4W , 3Ph4W
Dimensions:100 x 70 x 110 mm
